Pipe Stress Analysis
Our in-house interface between CAESAR-II and most of the modeling software packages will provide a unique modeling accuracy with %100 center of pipe to Center of pipe at minimal time.

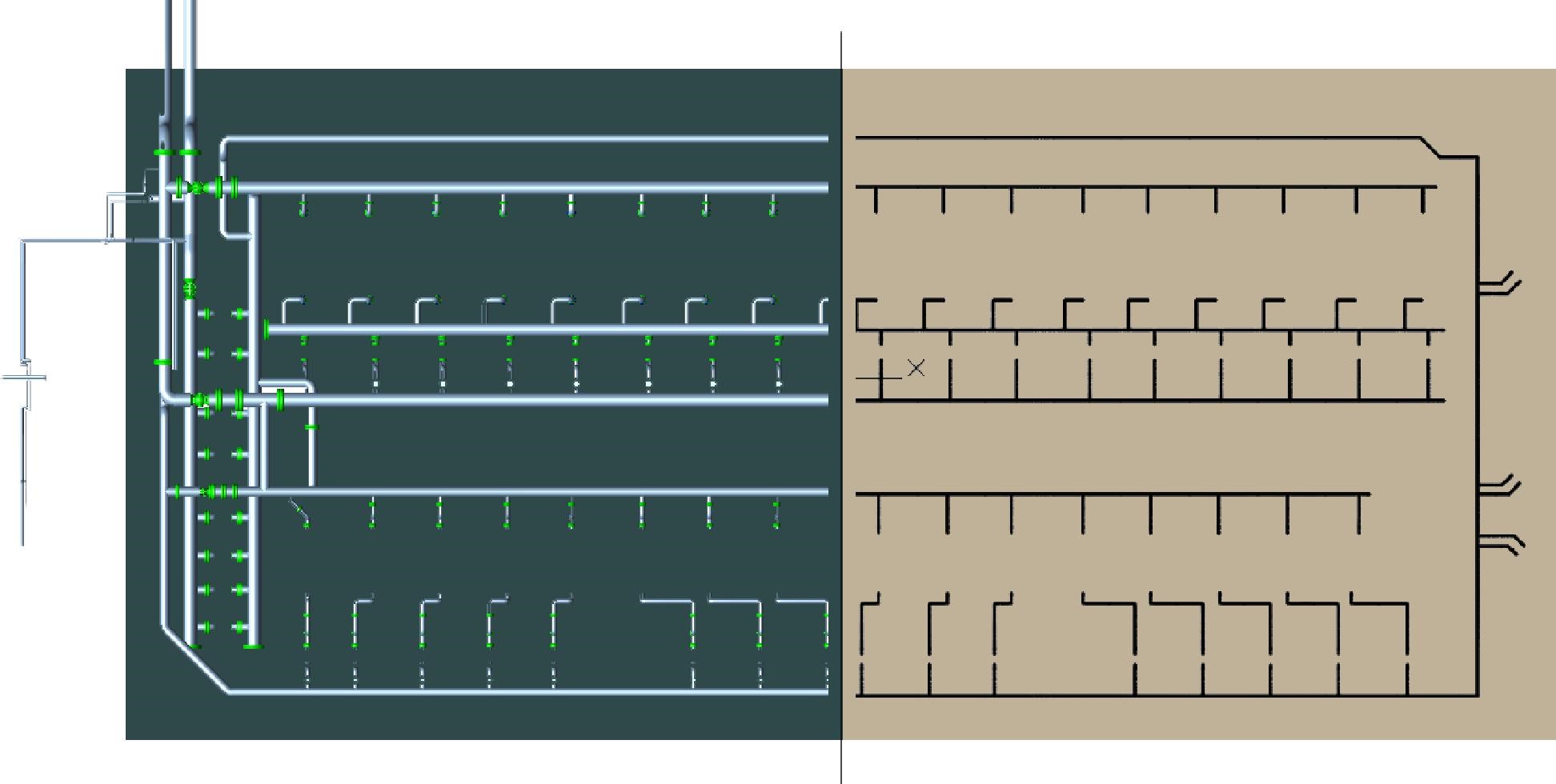

Sensitive piping analysis where structural stiffness shall be included by integrating the piping and structural modeling
No more time wasting in coordinating support locations, and civil loads. Our custom-made programs and high trained engineering team will provide you with the best solutions to produce a coordinated layout showing relevant Caesar-II Node, support type, support function and relevant structural frame and assigned loads. Other information such as system description, Caesar-II file and revision tracking are also available.

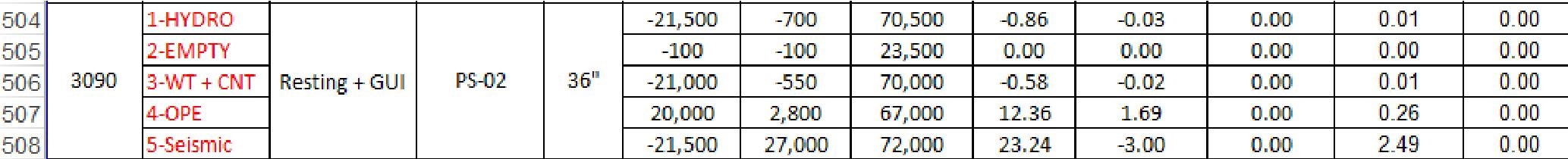

Civil load sheet linked with CAD layouts for piping loads combination, minimizing time wasted coordinating loads with other trades.
Customized civil load combination reports as per civil requirements.
printing out global and local loads or displacements.
Piping stress analysis review, comparing exactly what is in the model, to CAD layouts and support locations as well as all CAESAR-II inputs

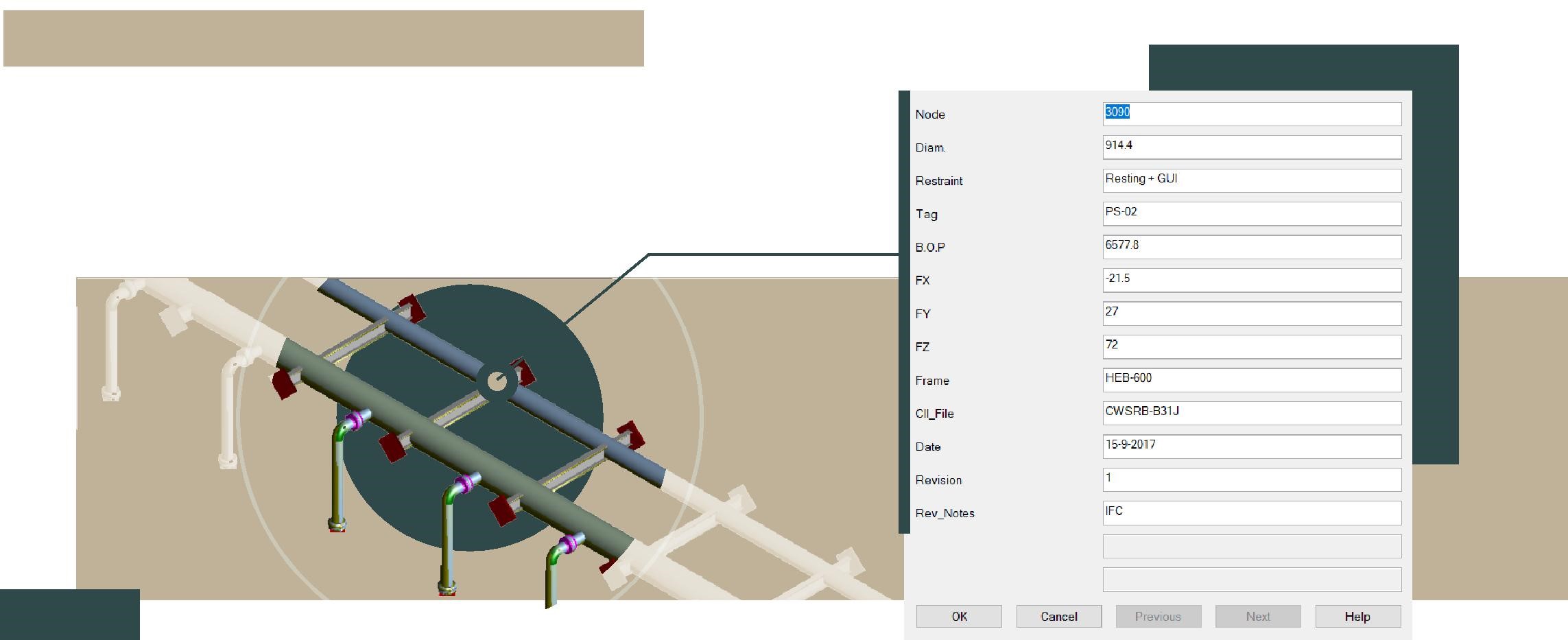

Our Cad Application can track every node in the caesar-II file, stating loads, Bottom of pipe, steel frame and revision tracking and any customized data

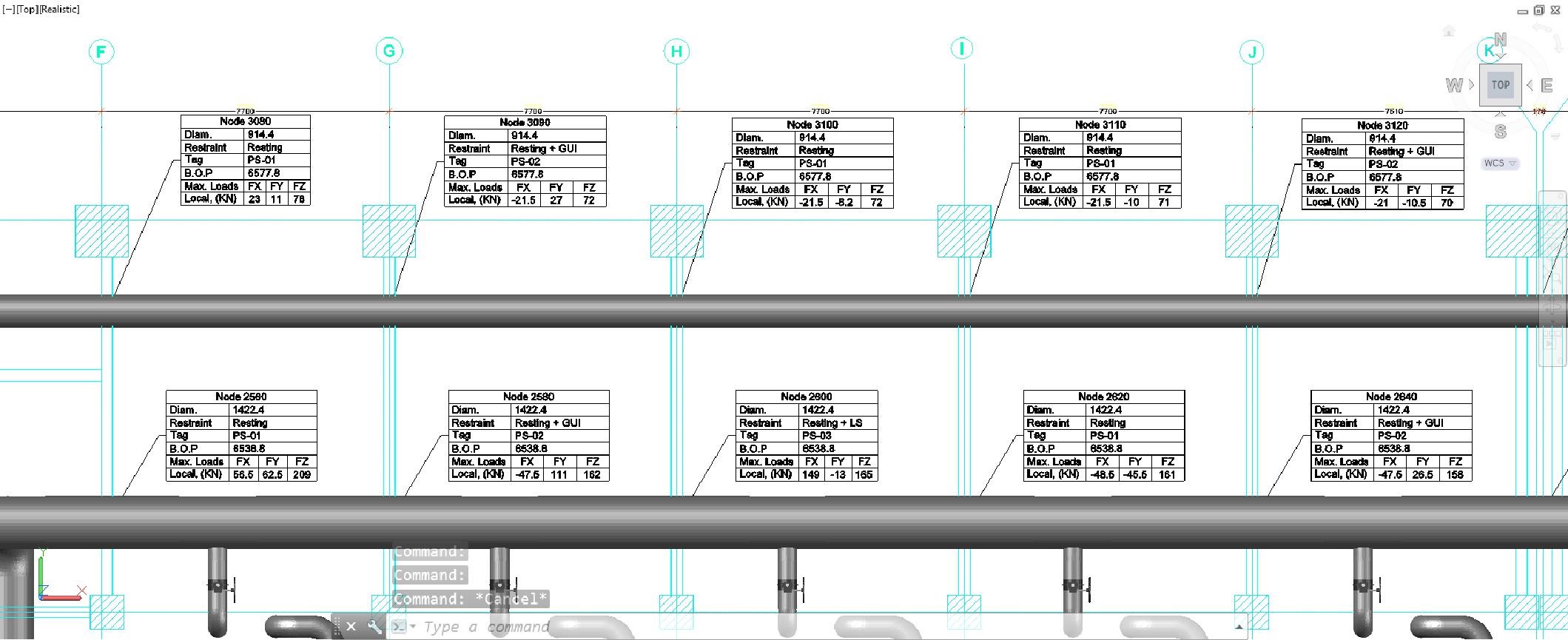

All Information are then reflected to CAD drawings to facilitate coordination and relevant civil load sheets are Printed out
